特征
1.本机具有四面刨和纵剖锯的双重功能，一机多用，节省时间，有效的提升产能
2.锯切时加工高度RMM623S 达150mm, RMM523S达130mm，广泛应用于木结构、防腐木和户外装饰、园林等的高效加工。
3.第二下刀轴更换为刨铣台板后，便可进行刨削加工，简单便捷。
4.采用变频送料，送料速度6-30米/分。

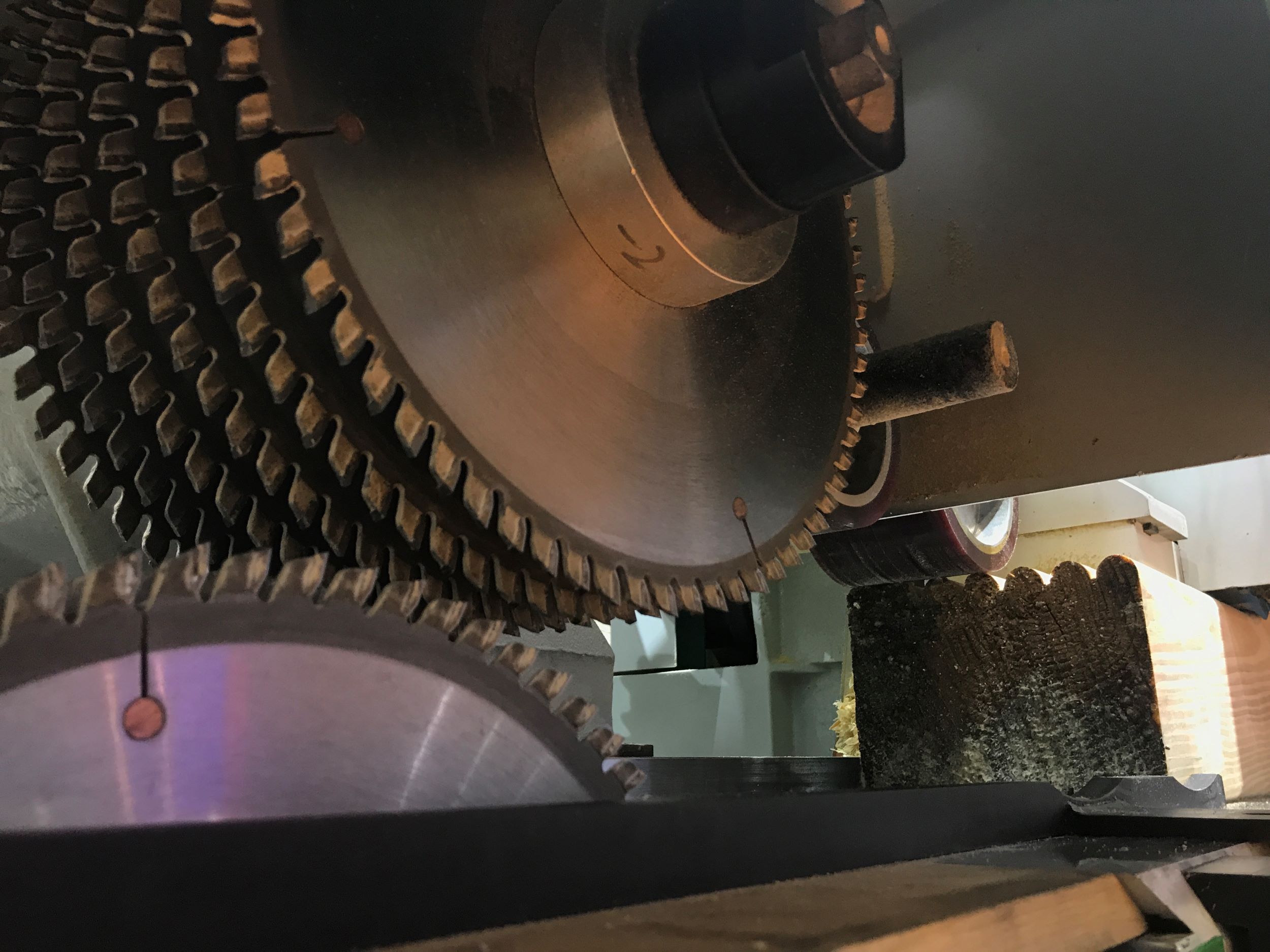

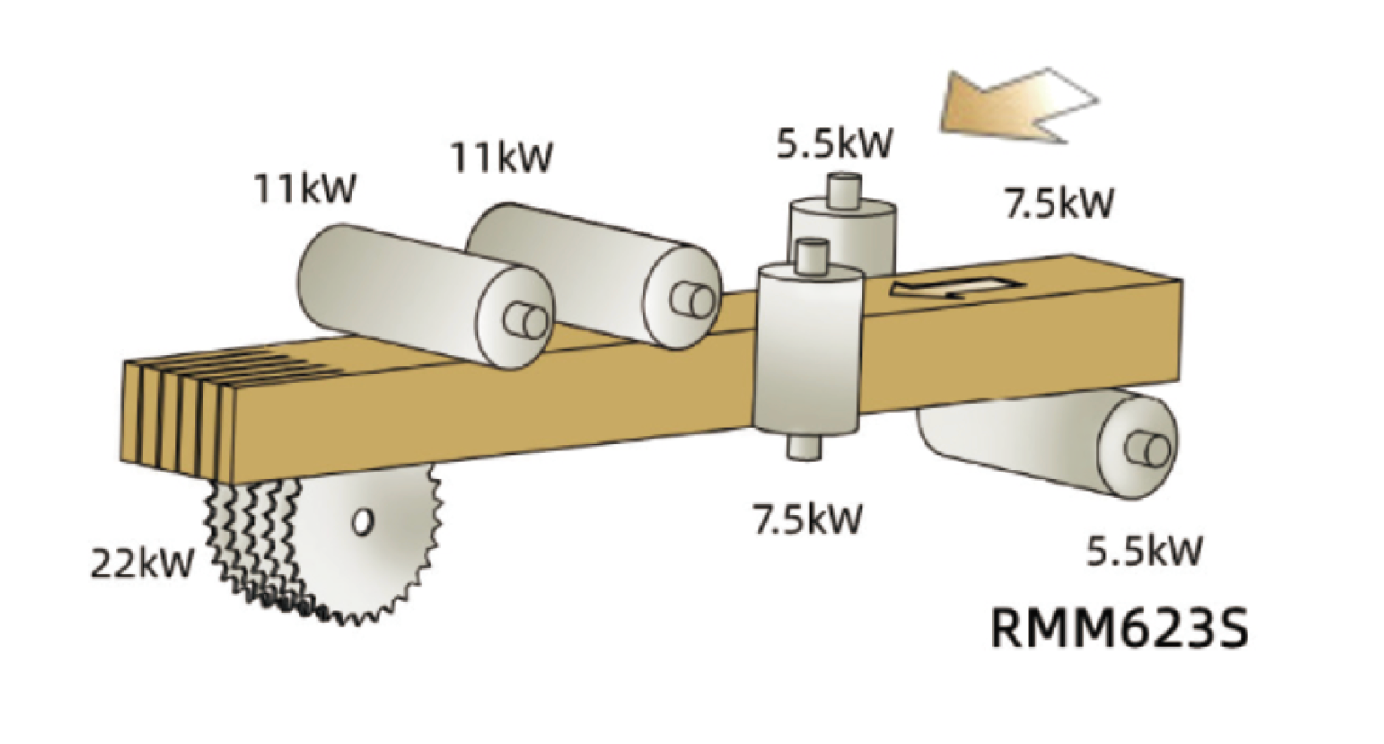

5.各主轴采用独立电机驱动。锯轴Ø50直径，电机配备22kW，切削力强劲。
6.主轴配置前后两对高精度轴承支撑，更适合重型切削。
7.电镀工作台面，耐磨性好。

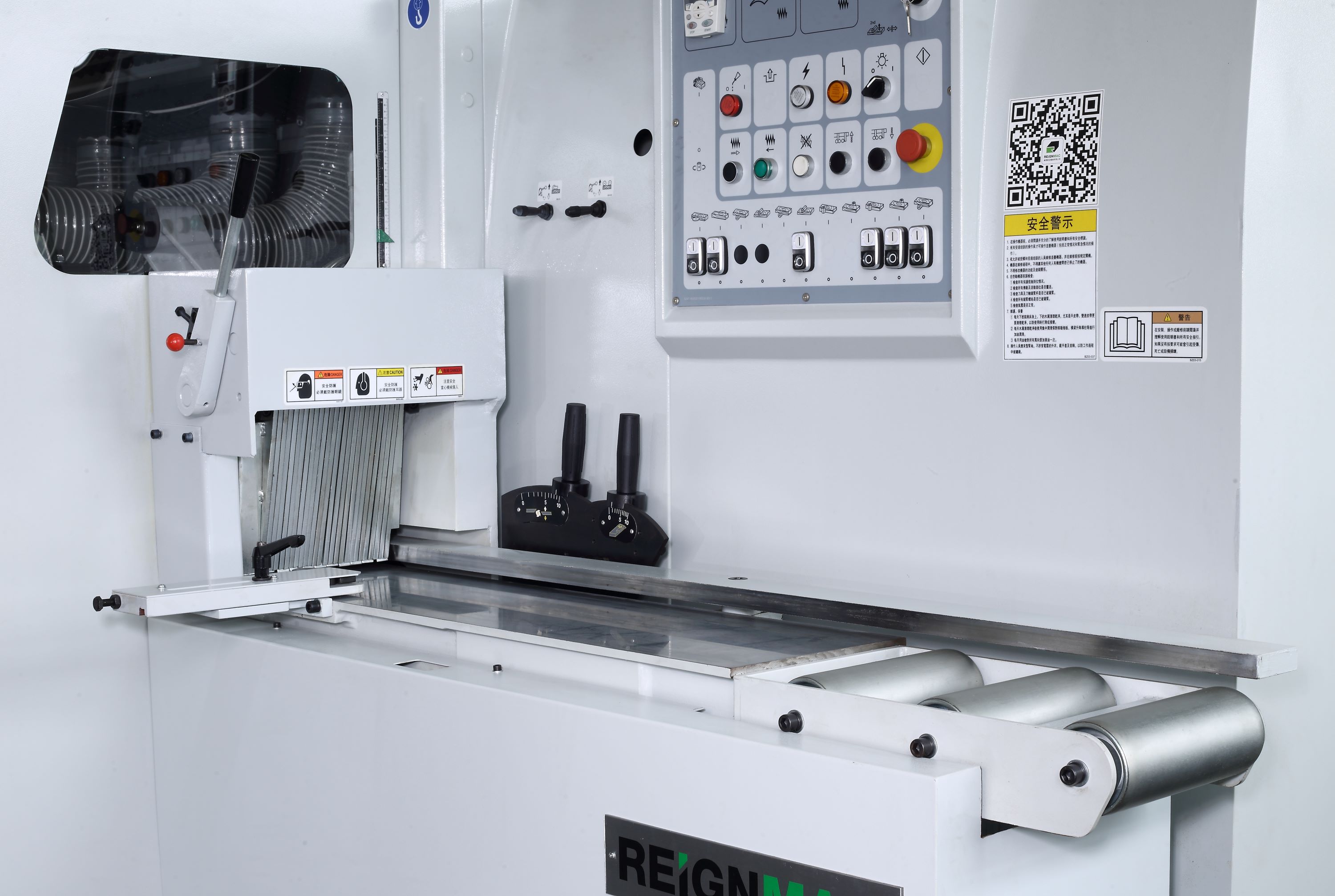

8.配备短料辅助装置，有效地提升短料的顺畅送进。
9.第一段压轮及短料装置配置提起气缸 (压紧和提起),可以根据加工要求随时可以退料、送料。
10.气动压紧式送料轮，可分段调整压紧力，有利于厚度不同的木料的送进畅顺。
11.多组下主动滚轮，提高送料效果，降低台面磨损。
12.工作台面和拖板采用手动油泵润滑，集中控制，方便操作。
13.进料口处装有防反弹装置，力避免木料反弹飞出，有效地起到安全保护作用。
14.配置国际品牌电器元件，稳定性好。
技术参数
项目及型号
|
RMM623SS
|
RMM623ES
|
RMM623S
|
RMM523S
|
| 加工宽度 (mm) |
刨铣 20-230, 对剖分片 60-200 |
20-230 |
20-230 |
| 加工厚度 (mm) |
20-200 |
刨铣 20-230, 纵剖分片 10-200 |
Planing 8-160 |
| 上下锯切 150 |
130 |
| 送料速度(r/min) |
6-30 |
| 刀轴转速/锯轴转速 (r/min) |
6000/4000 |
| 装刀范围 (mm) |
第一下刀轴 Ø110 ~ Ø145 |
第一下刀轴 Ø110 ~ Ø145 |
第一下刀轴Ø110 ~ Ø180 |
| 其余刀轴 Ø110 ~ Ø200 |
其余刀轴 Ø110 ~ Ø200 |
其余刀轴 Ø110 ~ Ø200 |
| 锯轴 Ø180 ~ Ø300 |
锯轴 e Ø180 ~ Ø320 |
锯轴 Ø180 ~ Ø320 |

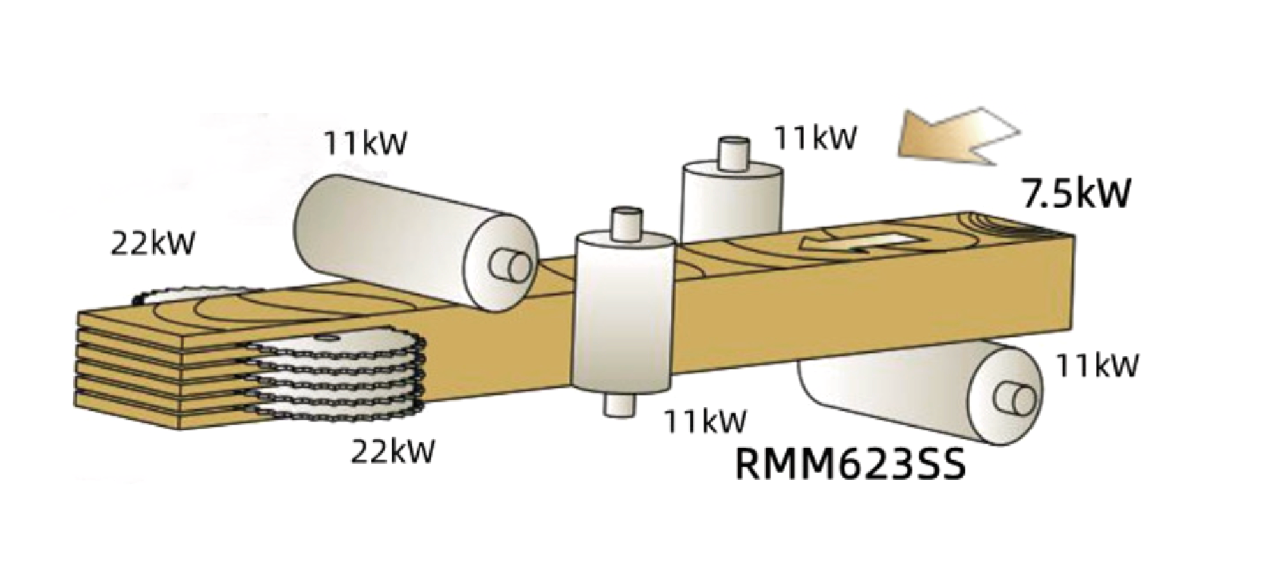

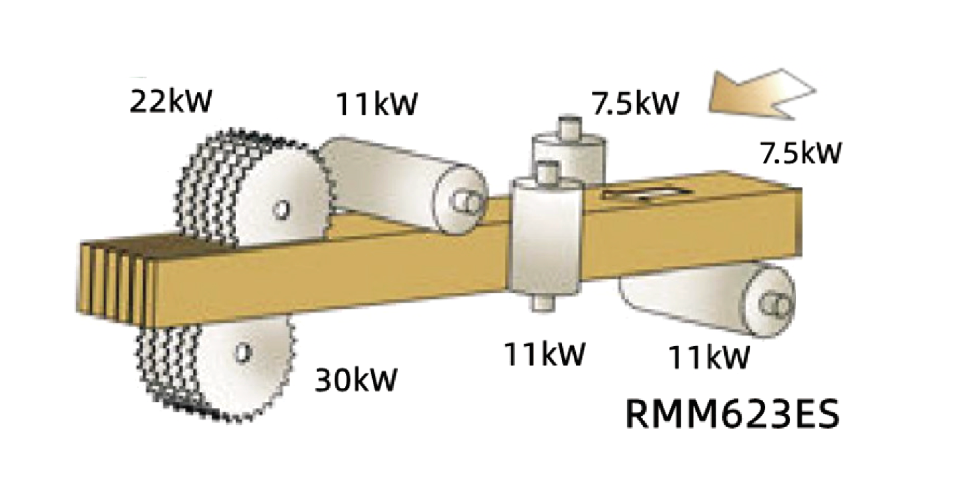

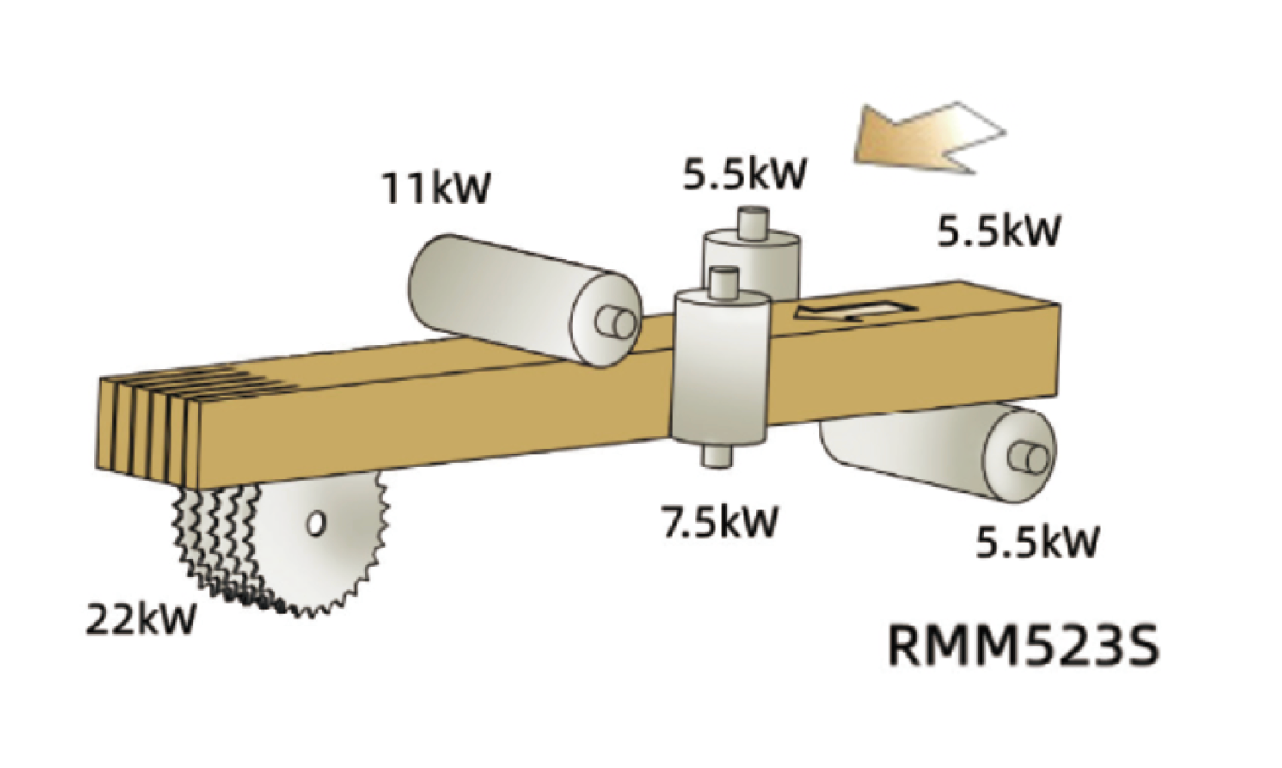

| 电机总容量 (kW) |
97.75kW/133HP |
101.25kW/136.7HP |
70.75kW/96HP |
57.75kW/78.25HP |
| 外形尺寸 (长x 宽 x 高))（mm）约 |
4800x1950x1960 |
4950×1980×1730 |
5160×1450×1430 |
4480×1450×1430 |
| 机床重量 (Tons) 约 |
5.3 |
5.9 |
4.5 |
3.7 |
注意：由于产品规格和设计不断变化,因此上述规格的任何变化将不再另行通知。
Q1：What processing scenarios is the M23S four-side planer & splitting composite series mainly suitable for?
A: The M23S four-side planer and splitting composite series is suitable for combined four-sided planing and splitting processing of wall panels, wood structural parts, construction materials and similar products.
Q2 Which parameters should be prioritized for display on the M23S four-side planer & splitting composite series page?
A: It integrates dual functions of four-sided planing and splitting; feed speed ranges from 6 to 30 m/min; the cutting height is 150 mm or 130 mm for different models. Available models include RMM623SS, RMM623ES, RMM623S and RMM523S.
Q3 What materials should be prepared before customers inquire about the M23S four-side planer & splitting composite series?
A: We recommend preparing workpiece drawings, material type, moisture content, incoming material size range, target finished product dimensions, per-shift production target, existing upstream and downstream equipment, workshop layout, power supply, air source and dust removal conditions, as well as requirements for automatic feeding, conveying, unloading or production line connection.
Q4 What are the differences between the M23S series and M23H/M23MH series?
A: The M23S features the composite function of planing plus splitting. If only high-speed four-sided machining is required, M23H or M23MH can be selected instead.
